Group 7 – Cooling

Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting

7-B Fan Belts and Pulleys
Year and Model7-02-017-03-01
Fan AssemblyFan and Generator Belt
1 req'd1 req'd
1928 — Q314001301331 or 30567
1929 — U31400143889
1930 — 30-U314001See note 1
1931 — PA302443375707
1932 — PB302443375707
1933 — PC606133See note 2
1933 — PD606133600793
1934 — PE606133600793
1934 — PF623376614966
1936 — P16061331117625
1936 — P26061331117625
1937 — P36061331117625
1937 — P46061331117625
1937 — PT506061331117625
1938 — P56061331117625
1938 — P66061331117625
1938 — PT57606133See note 3
1939 — P76061331117625
1939 — P86061331117625
1939 — PT816061331191149
1940 — P106061331117625
1940 — P96061331117625
1940 — PT1056061331191149
1941 — P116061331117603
1941 — P126061331117603
1941 — PT1256061331191149
1942 — P146061331117603
1946-48 — P156061331117603
Note 1
30-U up to 1517767 US built and 9302997 Canadian built use part 309618.
30-U after 1517767 US built and 9302997 Canadian built use part 303671.
Note 2
PC up to 1817101-3000610 US built and all Canadian built use part 600793.
PC after 1817101-3000610 US built use part 614966.
Note 3
PT57 up to 8622403-0186237-9208572 use part 1117625.
PT57 after 8622403-0186237-9208572 use part 1191449.
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
600793Fan and generator belt (49 3⁄8" X 3⁄4" - 38° angle) (All Plymouths 1933-49. 1950 Plymouths to engine 247786.)
 Interchange/Vendor:
  DaycoVX-68Obsolete
  Gates44 (Green Stripe)
  Gates660Obsolete number
  GoodyearHi-Miler 22494Good fit
  NAPANBH 2524489
  Dayco24490
606133Fan Assembly
 Associated parts:
  120228Screw ‡4
  120214Lockwasher ‡4
1117603Fan and generator belt
 Interchange/Vendor:
  NAPANBH 2524489
1117625Fan and generator belt
 Interchange/Vendor:
  NAPANBH 2524489
  GatesB47
  NAPANBH B47

7-C Radiator Core, Cap and Hose
Year and Model7-12-01
7-12-01		7-14-047-14-057-14-137-14-26
Radiator Filler Cap AssemblyRadiator Inlet HoseRadiator Outlet HoseRadiator Hose ClampRadiator Outlet Tube
UpperLowerInlet (Upper Hose)Outlet (Lower hoses)
1 req'd1 req'd1 req'd1 req'd2 req'd4 req'd1 req'd
1928 — Q4313743287305583055810548310548343286
1929 — U43137See note 53055830558105483105483303411
1930 — 30-U314253See note 6See note 9See note 12105477105483See note 15
1931 — PASee note 13066475105751057105479105477376850
1932 — PBSee note 23889205540551057105479 387556
1933 — PCSee note 3See note 737512050628105479211212600832
1933 — PDSee note 437539837512050628105479211212600832
1934 — PE60209062277537512050628105481105479622776
1934 — PF60209062299937512050628105481105479622998
1936 — P1649815See note 8See note 10See note 10870469870469634675
1936 — P2649815See note 8See note 10See note 10870469870469634675
1937 — P3773999See note 8See note 10See note 13870469870469854420
1937 — P4773999See note 8See note 10See note 13870469870469854420
1937 — PT50773999See note 8See note 10See note 10870469870469634675
1938 — P5773999See note 8See note 10See note 13870469870469854420
1938 — P6773999See note 8See note 10See note 13870469870469854420
1938 — PT57773999See note 8See note 10See note 10870469870469634675
1939 — P7837237See note 8See note 10See note 14870469870469854420
1939 — P8837237See note 8See note 10See note 14870469870469854420
1939 — PT81776379See note 8See note 10See note 10870469870469854420
1940 — P10837237See note 8See note 10See note 13870469870469854420
1940 — P9837237See note 8See note 10See note 13870469870469854420
1940 — PT105776379See note 8See note 10See note 14870469870469854420
1941 — P11837237See note 8See note 10See note 13870469870469867053
1941 — P12837237See note 8See note 10See note 13870469870469867053
1941 — PT125776379See note 8See note 10See note 14870469870469854420
1942 — P14837237See note 8See note 10See note 13870469870469867053
1946-48 — P15837237See note 8See note 11See note 13870469870469867053
Note 1
PA up to 1670001 use part 392919.
PA after 1670001 use part 380375.
Note 2
PB ptional equipment use part 392919.
PB standard equipment use part 380375.
Note 3
PC up to 1817101-3000610-931225 (PC) use part 602090.
PC fter 1817101-3000610-931225 (PCXX) use part 613722 or part 613049 (with ornament).
Note 4
PD use part 613722 or part 613049 (with ornament)
Note 5
Model U U.S. built use part 43287.
Model U Canadian built use part 303476.
Note 6
30-U U.S. built up to 1517571 use part 43287.
30-U Canadian built up to 9302997 use part 303476. 30-U U.S. built after 1517571 and after Canadian built 9302997 use part 314726.
Note 7
PC up to 1817101-3000610-931225 use 601274.
PC after 1817101-3000610-931225 use 375398.
Note 8
Cut as required from part 734749.
Note 9
30-U up to 1517571 U.S. built and 9302997 Canadian built use part 30558.
30-U after 1517571 U.S. built and 9302997 Canadian built use part 316077.
Note 10
3 3/4 inches of part 734737
Note 11
3 1/2 inches of part 734737
Note 12
30-U up to 1517571 U.S. built and 9302997 Canadian built use part 30558.
30-U after 1517571 U.S. built and 9302997 Canadian built use part 51057.
Note 13
5 1/2 inches of part 734737
Note 14
6 3/4 inches of part 734737
Note 15
30-U p to 1517571 U.S. built and 9302997 Canadian built use part 303411.
30-U after 1517571 U.S. built and 9302997 Canadian built use part 314679.
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
30558Radiator hose (outlet) (Q, U, 30-U up to 1517571 U.S. built and 9302997 Canadian built)
 Associated parts:
  396326Radiator hose stock (cut to 3 1⁄2" long)
43287Radiator hose (inlet) (U.S. built) (Q, U, 30-U up to 1517571 U.S. built)
 Associated parts:
  396326Radiator hose stock (cut to 9 3⁄8" long)
50628Radiator hose (outlet) (lower) (PC, PD, PE, PF)
 Associated parts:
  396328Radiator hose stock (Cut to 4 3⁄4" long)
51057Radiator hose (outlet) (lower) (30-U after 1517571 U.S. built and 9302997 Canadian built, PB)
 Associated parts:
  396324Radiator hose stock (cut to 4" long)
55405Radiator hose (outlet) (PA)
 Associated parts:
  396324Radiator hose stock (cut to 3 1⁄2" long)
55405Radiator hose (outlet) (upper) (PB)
 Associated parts:
  396324Radiator hose stock (cut to 3 1⁄2" long)
303476Radiator hose (inlet) (Canadian built) (U, 30-U upto 9302997)
305036Radiator hose
 Associated parts:
  396324Radiator hose stock (cut to 9 1⁄2" long)
306647Radiator hose (inlet) (PA)
 Associated parts:
  396328Radiator hose stock (Cut to 9 1⁄4" long)
314726Radiator hose (inlet) (30-U after 1517571 U.S. built and 9302997 Canadian built)
 Associated parts:
  396324Radiator hose stock (cut to 13 3⁄4" long)
316077Radiator hose (outlet) (upper) (30-U after 1517571 U.S. built and 9302997 Canadian built)
 Associated parts:
  396324Radiator hose stock (cut to 3 1⁄8" long)
375120Radiator hose (outlet) (upper) (PC, PD, PE, PF)
 Associated parts:
  396328Radiator hose stock (Cut to 3 1⁄4" long)
375398Radiator hose (inlet) (PC after 1817101-3000610-9312255, PD after 2149824)
388920Radiator hose (inlet) (PB)
 Associated parts:
  396328Radiator hose stock (Cut to 9 1⁄2" long)
396324Radiator hose (38" long 1 1⁄4" I.D. x 1 5⁄8" O.D.)
 Interchange/Vendor:
  Goodyear5702036" long
396326Radiator hose (3 ft. length 2 1⁄8" I.D. x 2 1⁄2" O.D.)
396328Radiator hose (3 ft. length 1 1⁄2" I.D. x 1 7⁄8" O.D.) (PA, PB, PC, PD)
 Interchange/Vendor:
  Gates24024
  Goodyear57024
601274Radiator hose (inlet) (PC up to 1817101-3000610-9312255, PD upto 2149824)
 Associated parts:
  396328Radiator hose stock (Cut to 7 1⁄4" long)
6385183 ft. length 2 I.D x 2 3⁄8 O.D. Radiator Hose
7347353 ft. length 1 9⁄16 I.D x 1 15⁄16 O.D. Radiator Hose
7347363 ft. length 1 7⁄16 I.D x 1 13⁄16 O.D. Radiator Hose
7347373 ft. length 1 1⁄2 I.D x 1 7⁄8 O.D. Radiator Hose
7347383 ft. length 2 1⁄8 I.D x 2 1⁄2 O.D. Radiator Hose
7347483 ft. length 1 I.D x 1 3⁄8 O.D. Radiator Hose
7347493 ft. length 1 3⁄4 I.D x 2 1⁄8 O.D. Radiator Hose
7348673 ft. length 1 1⁄4 I.D x 1 5⁄8 O.D. Radiator Hose
7348683 ft. length 1 3⁄8 I.D x 1 3⁄4 O.D. Radiator Hose
7348693 ft. length 1 15⁄16 I.D x 2 5⁄16 O.D. Radiator Hose
7350663 ft. length 2 5⁄8 I.D x 3 O.D. Radiator Hose
7352003 ft. length 1 3⁄16 I.D x 1 9⁄16 O.D. Radiator Hose
837237Part837237Radiator Filler Cap Assembly
 Interchange/Vendor:
  NAPA703-1400Balkamp product line BK7031400
870469Part870469Hose Clamp

7-G Water Pump
Year and Model7-42-017-42-047-44-047-45-037-45-22
Water pump assembly packageWater pump repair kitWater pump body gasket (to cylinder block)Water pump shaftWater pump shaft bushing
FrontRear
1 req'd
1930 — 30-U314706 314723 210062383032
1931 — PA375696 314725 365705313951
1932 — PB375696 314725 365705313951
1933 — PC600794 600800600801600802600803
1933 — PD600794 600800600801600802600803
1934 — PE622767 600800600801600802600803
1934 — PF600794 600800600801600802600803
1935 — PJ 865491 600801
1936 — P1947544865491637440600801865492600803
1936 — P2947544865491637440600801865492600803
1937 — P3947544865491637440600801865492600803
1937 — P4947544865491637440600801865492600803
1937 — PT50947544865491637440600801865492600803
1938 — P5947544865491637440600801865492600803
1938 — P6947544865491637440600801865492600803
1938 — PT57947544865491637440600801865492600803
1939 — P7947544865491637440600801865492600803
1939 — P8947544865491637440600801865492600803
1939 — PT81947544865491637440600801865492600803
1940 — P10947544865491637440600801865492600803
1940 — P9947544865491637440600801865492600803
1940 — PT105947544865491637440600801865492600803
1941 — P11947544865491637440600801865492600803
1941 — P12947544865491637440600801865492600803
1941 — PT125947544865491637440600801865492600803
1942 — P14947544865491637440600801865492600803
1946-48 — P151064750865491637440600801865492600803
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
304188Water pump packing (30-U)
 Interchange/Vendor:
  Grainger4VLH73⁄16 inch graphite impregnated rope in a 5 foot length made by Palmetto Packings. Reported to “fit like a gloveâ€?.
313961Water pump packing (PA, PB)
600794Water pump assembly (PC,PD)
 Associated parts:
  103196Water Pump Bracket Stud (short) (PC,PD)
  112572Water Pump Bracket Stud (long) ‡2 (PC, PD)
  120369Water Pump Bracket Stud Nut ‡3 (30-U, PA, PC, PD)
  120382Water Pump Bracket Stud Lockwasher (30-U, PA, PC, PD)
  120854Water pump body cover plate screw ‡4 (PC,PD)
  121753Water pump bocy cover plate lockwasher ‡4 (PC,PD)
  600796Water pump body assembly ‡1 (PC, PD)
  600798Water pump body cover plate ‡1 (PC,PD)
  600799Water Pump Body Cover Plate Gasket ‡1 (PC, PD)
600799Water pump body cover plate gasket (PC, PD)
 Interchange/Vendor:
  Victor26676
600800Water pump to cylinder block gasket (PC, PD)
 Interchange/Vendor:
  Victor25489
637440Water pump body gasket (to cylinder block)
 Interchange/Vendor:
  CarQuestCTH-20963
865491Water pump repair kit
 Interchange/Vendor:
  Chrysler1064752
947544Water pump assembly
 Interchange/Vendor:
  NAPA OnlineWP 58459(Remanufactured)
  NAPA OnlineTFW 42554The NAPA TFW 42554 is listed as a replacement for the 1064750 water pump used on a P15. Since the gaskets, impeller shaft and other parts are the same between the 1064750 and 947544 there is a good chance this replacement will fit.
1064750Water pump assembly package (P15)
 Interchange/Vendor:
  Borg-Warner15-0053
  CarQuestAUT10-502
  CarQuestNWP-713
  Master WaterpumpsCP713
  NAPA OnlineTFW 42554New Manufacture
  NAPA OnlineWP 58459Remanufactured
  Gates42554
1064752Water pump rebuilding kit
 Associated parts:
  110417Pin (front bushing) ‡1 (PC, PD)
  1179065⁄32x1 3⁄16 Steel square end straight pin ‡1 (30-U,PA,PC,PD)
  600799Water pump body cover plate gasket ‡1 (PC,PD)
  600800Water pump to cylinder block gasket ‡1 (PC, PD)
  600802Water pump shaft bushing (front) (PC, PD)
  600803Water pump shaft bushing (rear) (PC, PD)
  603062Water pump shaft with impeller and seal assy. (PC, PD)
 Interchange/Vendor:
  AMCOWPK-180All models 1933-54
  ToledoW8023All models 1934-42

7-H Thermostat and Heat Indicator
Year and Model7-41-04
Thermostat Assembly
160°200°
1 req'd1 req'd
1930 — 30-U391269
1931 — PA391269
1932 — PB391269
1933 — PC612048
1933 — PD612048
1934 — PE621954
1934 — PF612048
1936 — P1650048
1936 — P2645494
1937 — P3650048
1937 — P4645494
1937 — PT50645494
1938 — P5650048
1938 — P6645494690242
1938 — PT57645494690242
1939 — P7650048852780
1939 — P8645494690242
1939 — PT81645494690242
1940 — P10870681870661
1940 — P9650048852780
1940 — PT105870681870661
1941 — P11650048852780
1941 — P128670401124989
1941 — PT125See note 11124989
1942 — P14See note 2See note 4
1946-48 — P15See note 3See note 5
Note 1
With radiator shutter use part number 645494 otherwise use 867040.
Note 2
P14S use part number 650048. P14C use part number 867040.
Note 3
P15S use part number 650048. P15C use part number 867040. P15S (use with heaters using metal tubing) use part number 867040.
Note 4
P14S use part number 852780 (180°). P14C use part number 1124989 (180°).
Note 5
P15S use part number 852780 (180°). P15S (use with heaters using metal tubing) use part number 1124989 (180°). P15C use part number 1124989 (180°).
Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting Spacer to assist Netscape formatting
391269Thermostat Assembly
 Interchange/Vendor:
  Chrysler652188
612048Thermostat assembly (160°F) (PC, PD, PF)
 Interchange/Vendor:
  Stant13476Reverse poppet thermostat
  Stant29706Economy model
  Tru-Temp651
  NAPATHM 91“Regular”
852780Thermostat Assembly
 Interchange/Vendor:
  Harrison1264

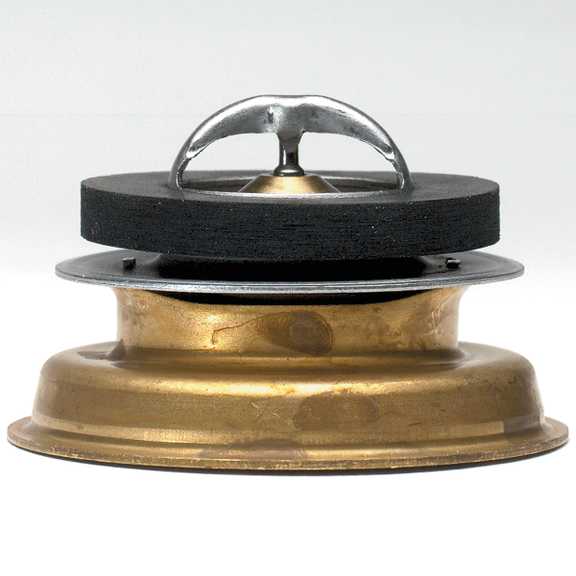

867040Part867040Thermostat Assembly
 Interchange/Vendor:
  NAPATHM 55
1124989Thermostat Assembly
 Interchange/Vendor:
  NAPATHM 155
Last database update: 07/27/2023 17:40:20
Page generated: 07/28/2023 08:42:43
